Vortex 2.8m Square High Tensile Commercial Umbrella
One of the smaller Vortex models this square umbrella is 2.8m x 2.8m but still has all the same physical presence of the larger models and the same construction and overall strength for being left out in nearly all weather. The Vortex will just sit there when many other umbrellas have broken or flown off down the road. tested to over 100km/h this is one sunshade protection canopy which can be left for most of the time in its open position.
Phone Our Team Of Experts To Discuss Your Requirements
CALL US NOW ON 01933 449 000
The Vortex parasol was designed many years ago to be the best of the best in terms of a commercial umbrella with minimal management when used in almost any environment.
Manufactured entirely in the UK, this umbrella has only the highest quality stainless steel components and super tough fabric for the canopy in a wide range of over 40 standard colours.
The Vortex can be used nearly all year round in the harshest conditions and only needs to really be retracted when there is a storm warning and winds over 100km/h.
Imagine a large commercial umbrella which hardly ever needs closing and can be left open most of the year round? With the Vortex you don’t have to imagine, as it is a reality.
The Vortex umbrella is a masterpiece of engineering and manufactured entirely in the UK with the highest quality components and a fire resistant, waterproof PVC canopy from market leaders - Ferrari fabrics. Over 40 fabric colour options as standard and a marine grade 316 stainless steel framework combine to offer an umbrella capable of dealing with wind speeds over 100km/h.
Commercial specification sun and rain protection, with the added advantage of a very high wind rating making it perfect for the catering and restaurant trade where management of umbrellas is difficult with the weather changes.
With LED lights and heaters and the pole mounted table this is a perfect addition to any outdoor area in a bar, restaurant, cafe or club. Enhance your outdoor area with the added knowledge there is minimal management required for the product when the weather changes. The umbrella only really needs closing when there is a weather warning of very high winds. The closing is easy enough with a rope pulley system.

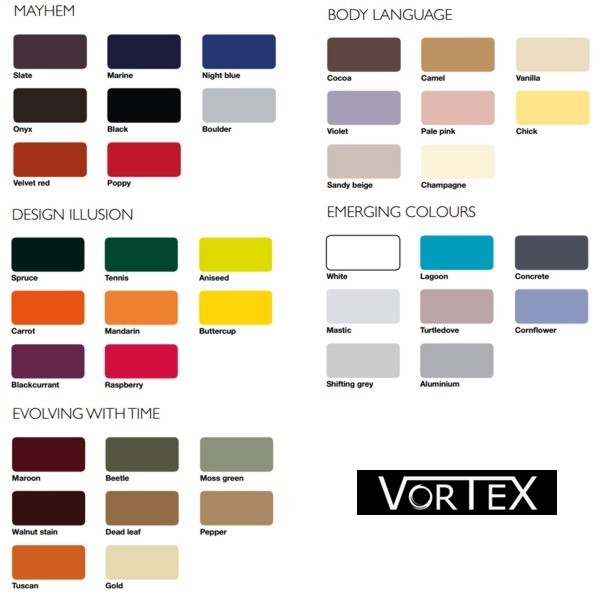

The Vortex parasol has an option of two canopies, the Ferrari 502 Satin PVC or Ferrari STAM 6002, these fabrics are the world’s leading materials for high tensile membrane structures. Both fabrics are fully waterproof, have a high UV resistance and are fire retardant. The Ferrari 502 Satin PVC comes in 40 colours and has a satin finish with PVDF coating making it dirt resistant. The Ferrari STAM 6002 comes in 14 colours and has a textured matte finish which makes it look like a traditional fabric.
Choose from 9 different standard sizes, all tested and certified for commercial applications and a guaranteed performance.
Highly durable, UK manufactured, commercial umbrella, which is also collapsible when required although this is infrequent during an average year.
Designed for shade and shelter for most of the year round.
BS certified to BS EN13782:2005 - windspeed > 100km/h
High tensile waterproof and fire retardant PVC canopy
Precision engineered 316 stainless steel framework as standard
Prices online include:
Complete umbrella with framework, canopy and operating mechanism
Cover protection bag in PVC with zip 3560mm x 545mm
Your options are listed within the shop, but there are many other options which require further discussion and quoting for exact specification.
Choice of Bases for Installation:

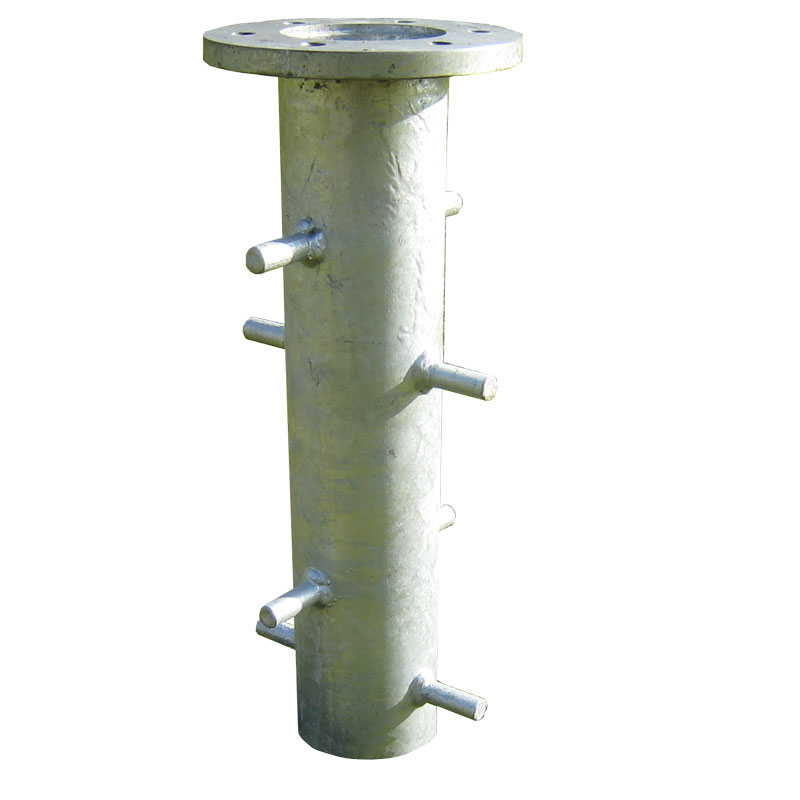

In Ground Base:
These are suitable for permanent fixing of the Vortex Umbrellas and provides the best stability for the product with 3 different size options depending how solid or loose your ground and soil conditions are.
The standard in ground base is 500mm length with a reinforced version at 700mm long and a 1200mm long version for the loosest of ground, i.e. sandy soil, etc. The concrete required for each option is shown in the installation PDF document in our downloads section above. We include a cover plate for any in ground base to protect the tube when the umbrella is removed and to not leave a hole and trip hazard
Electrical cables should be run through the ground, throughout the ground base, completely hiding them.

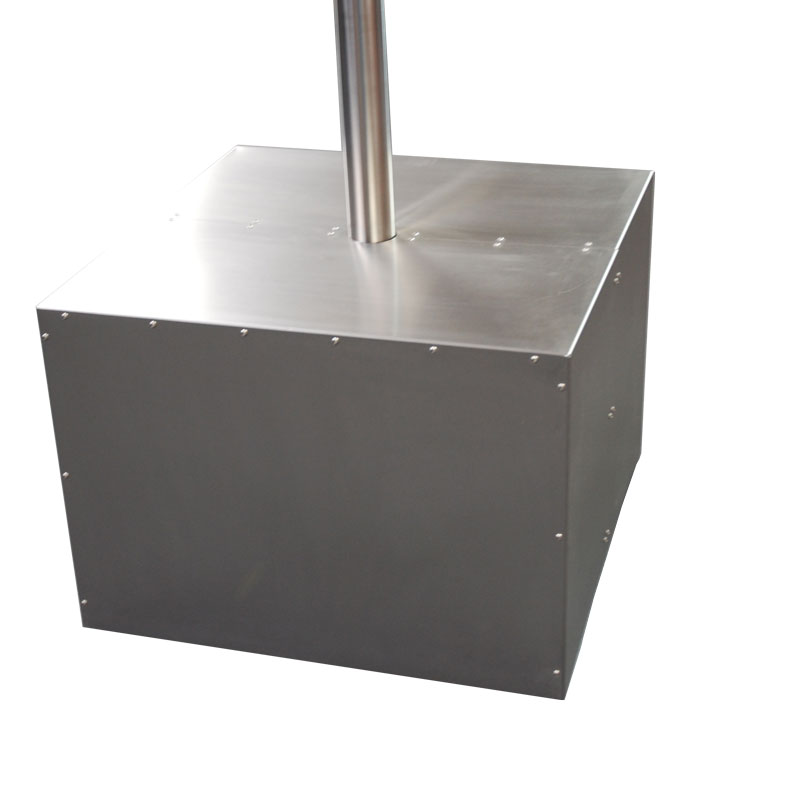

Freestanding Base:
A freestanding square steel base with 36 slabs totallling 975kg, to provide the stability required for any of the umbrella sizes. Slabs are 400mm x 400mm x 65mm. The freestanding base is 810mm x 810mm x 595mm high when completed and has options for a stainless steel cover or marine grade FR cushion cover for providing seating.
(PLEASE NOTE THAT THE IMAGE BELOW SHOWS AN ADDITIONAL STAINLESS STEEL COVER OVER THE SLABS)

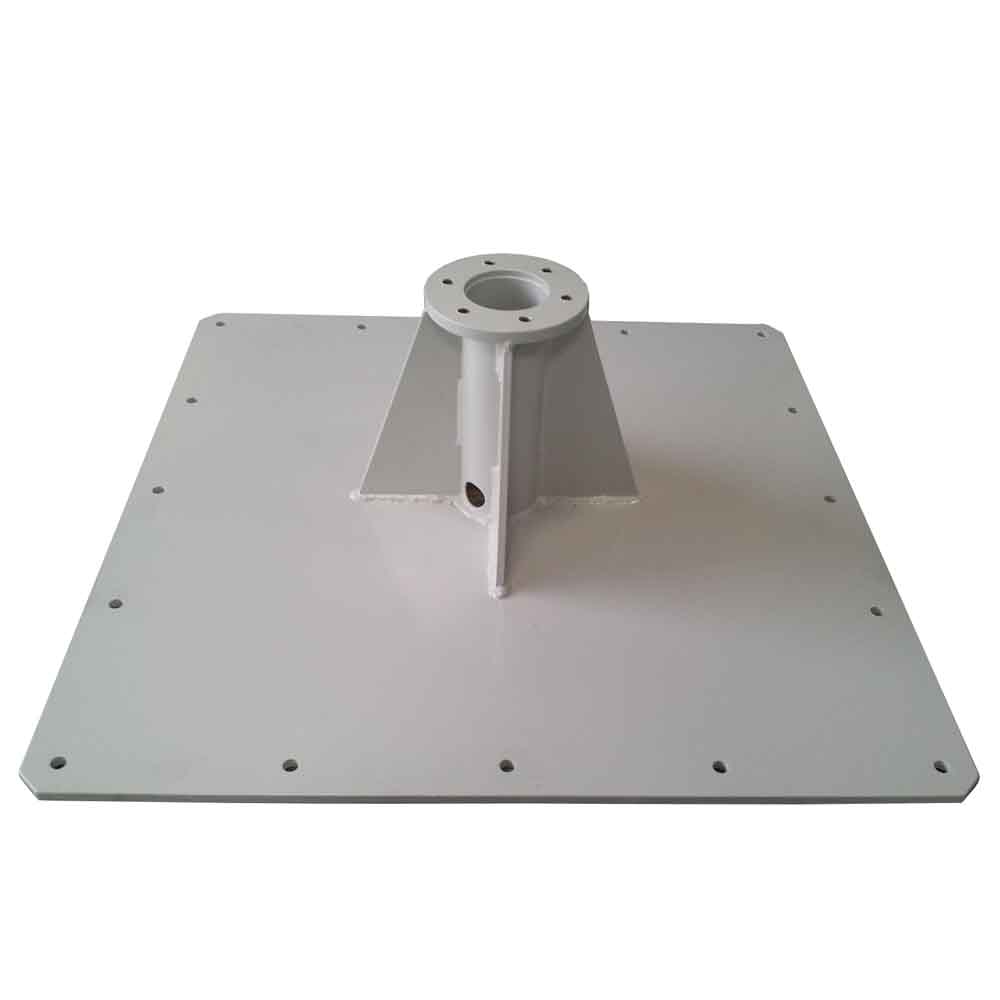

Flat Steel Decking Mount:
The flat steel plate is to be bolted to an existing solid surface. 800mm x 800mm a 10mm thick with base tube built in.
This provides a permanent fix in situations where it is not possible to install a ground base.
Bespoke Solutions:
We can also provide bespoke solutions where none of the above are suitable for the site conditions. Please call or email to discuss.
Umbrella Frame
The Vortex frame is manufactured from 304 grade stainless steel. The pole diameter is 76mm with a 3m wall thickness. Main ribs are 42mm with a 1.6mm wall thickness and supporting ribs are 38mm with a 1.5mm wall thickness.
Choose your perfect colour for the canopy and also the best base support method depending on your site conditions. Free standing above ground, cocrete weighted support (957kg in total) or the in ground steel sleeves to insert the umbrella pole into and also removable when required with a cover plate to protect the hole left.
A 10mm flat steel plate is another option when you can screw/bolt this onto a steel frame or decking base and have minimal intrusion all round.
Custom made bases are also possible when the ground conditions and site requires a specialist solution. Please email or call directly to discuss.
Other common options include:
Rainwater guttering to connect 2 or more umbrellas and direct rainfall to one side of the umbrellas.
Side sheets with velcro connection to the umbrella canopy. Designed to offer protection from the elements to one or more sides of the umbrella with a window section included as standard. Doors can be added into these side sheets for an extra cost to provide access if closing all 4 sides.
Stainless steel or cushion covers for free standing floor mounted bases to provide seating underneath the umbrellas.
Pole mounted tables - The Fast Bar. A height adjustable circular table for attaching to the umbrella pole and provide a table for drinks, etc.. 600mm diameter

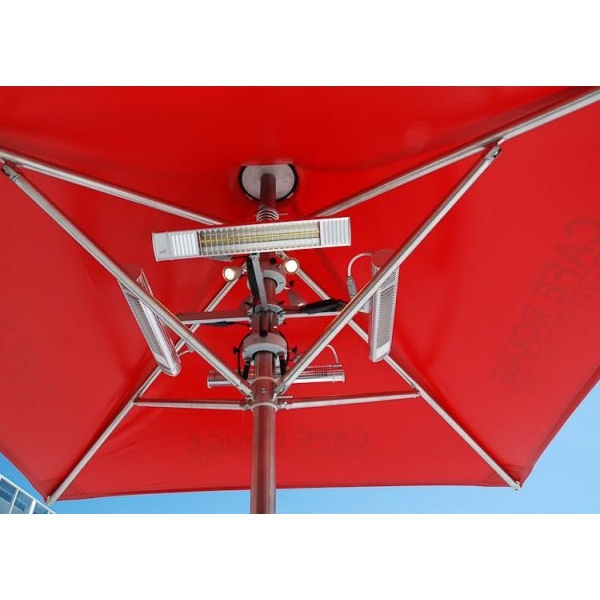

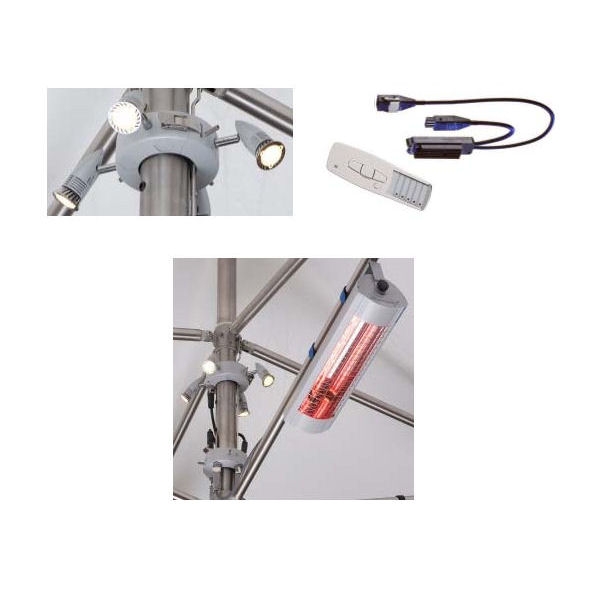

Infra red heaters and LED lighting. Single, double or 4 heater sets to mount underneath the canopy or along the mast supports to provide instant heating to users underneath.
Solamagic or Victory lighting model options.
LED lighting as individual purchases or as a bundle with preconfigured wiring for easy installation, along with heating options.
Full details in PDF brochure.
Screen printing or digital print adhesive vinyl logos or lettering for promotion of brands and company details. Stand out and use the umbrella as a large advertising board sitting high up for all to see…
Complete cleaning kits for the canopy and steel framework, especially useful near coastal areas where cleaning is far more essential.
Installation details are provided and we can offer an installation service with prices on application for anywhere in the UK
Frame Warranty
Vortex High Tension umbrellas are guaranteed, from original date of purchase by the initial buyer, for a period of up to 5 years* against defects in metal fixtures resulting from faulty workmanship and faulty materials. Although we strive to provide the highest quality, we accept no responsibility for print degradation.
The manufacturer will not be liable for any extra costs incurred by the buyer as a result of defects found in the product or as a result of faulty product, over and above those covered in the guarantee contained in the paragraph above.
* 5 year warranty requires product registration with the manufacturer.
Canopy Warranty
Fabric warranty is provided by the manufacturer of the material used in the canopy. This can vary with the choice of material. Please refer to the table for a summary, or the following section for detailed information on the fabric warranty for the standard fabrics.
Please note tensile fabrics will only be covered under warranty when tensioned, in this case when the parasol is fully open.
Modifications
Please note that due to the nature of the parasol, ANY modification of the parasol will invalidate the warranty. Not limited to, but including:
Do not shorten the pole
Do not shorten the bottom of the pole below the flange at the bottom of the pole.
Do not shorten the in-ground base
Do not drill additional holes in the pole
Do not widen any of the holes provided in the pole for power cables.
Modification made by the factory, prior to delivery will be covered by standard warranty terms, except for wind loading guarantees. No wind loading guarantee is provided for any modified product, whether factory modified or not.
Heaters and LED Lights warranty
All heating and lighting systems warranties are supplied by the manufacturer of the relevant components. Please refer to specific manufacturers and models
