Markilux MX-3 - Electric Full Cassette Awning
Markilux
One of the most popular Markilux folding arm awnings since its launch in 2019 and simply one of those models which always looks good, closed or fully open.
This awning oozes with the high quality finish and features of any Markilux awning, all manufactured to the very highest of standards for over 50 years in Germany. Tested, developed and manufactured in a country where quality is everything and product performance is also key. The high quality components from the smallest screws to the actual fabric itself combine to make an awning which you will enjoy for many years to come....
Phone Our Team Of Experts To Discuss Your Requirements
CALL US NOW ON 01933 449 000
Create your own truly beautiful outdoor space starting with an awning like the MX-3. Beautiful design, beautiful fabrics and high performance all round. The MX-3 is just one of the many products to come from over 50 years of building high quality awnings and sun shade products to protect and enhance outdoor spaces. This is a full cassette compact awning with style and a lot of choice for customising.

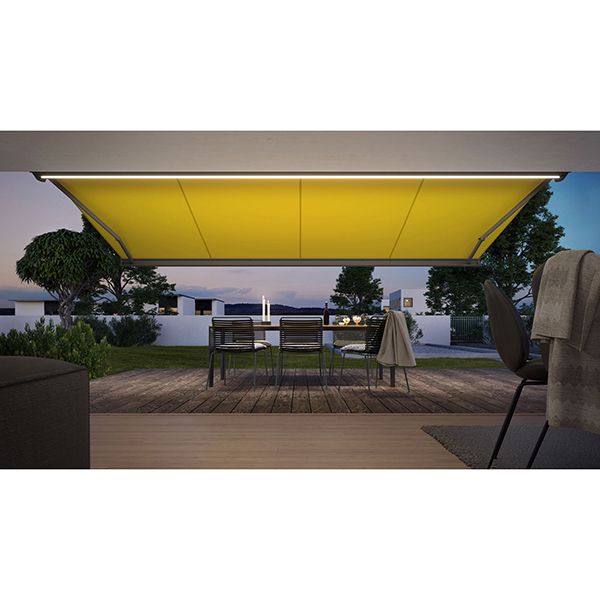

The LED line lighting option, built into the cassette, is just one of the optional features to make your awning far more than a sun shade product and more value overall to your outdoor space.
Markilux MX-3
An electric, full casssette retractable awning with a rounded silhouette and beautiful curves in a made to measure offering for the perfect fit to your home.

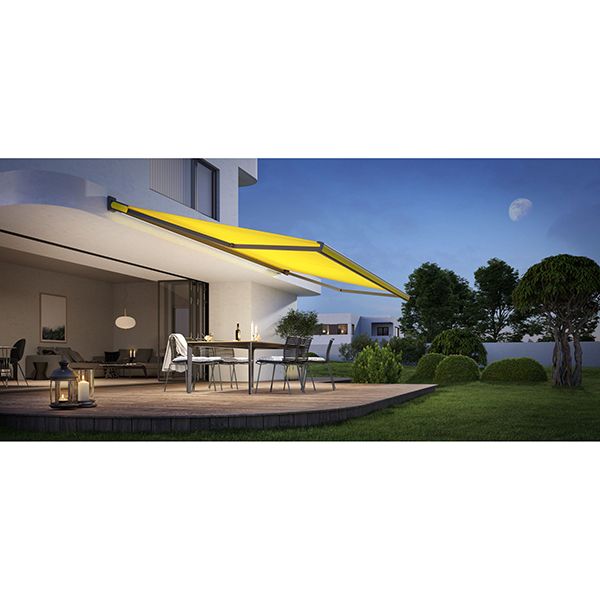

This awning looks good closed, open and when in use with the optional LED lights which can always be operated even when the awning is not in use.

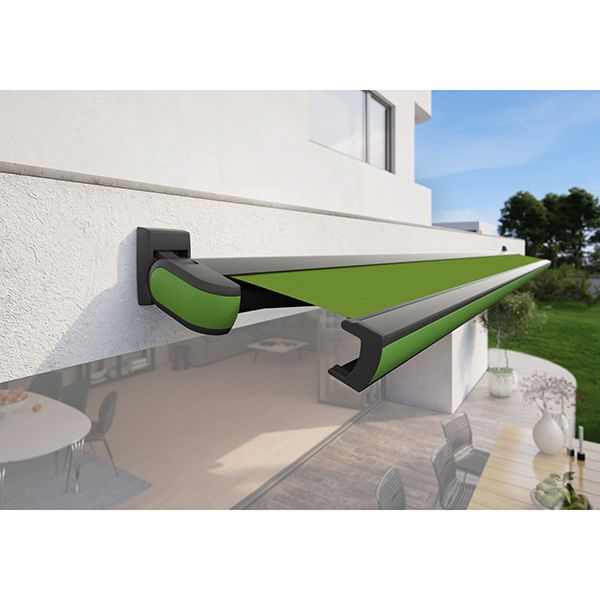

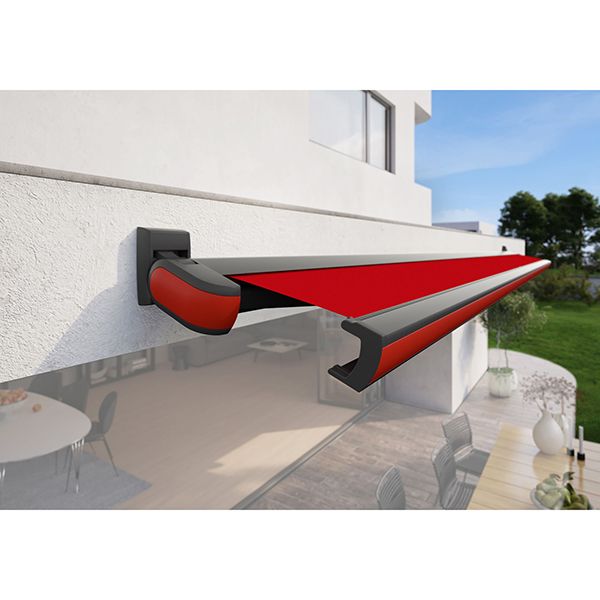

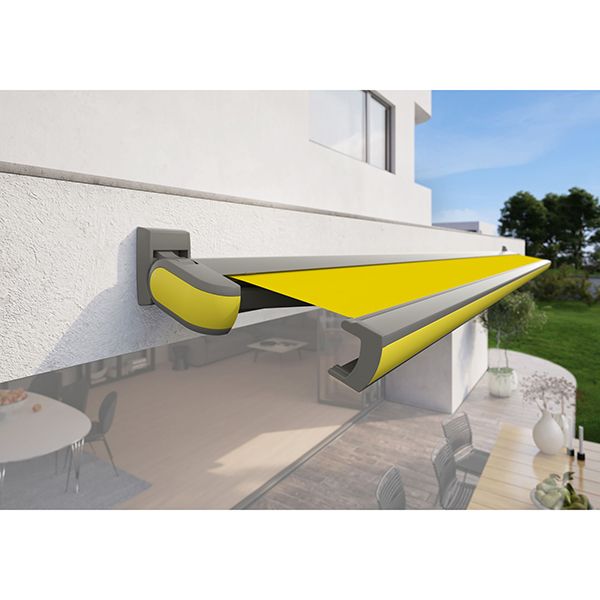

The choice to mix-and-match the strip of colour of the end cap insert with that of the fabric makes for a coordinated style designed to impress. Entirely fresh and innovative, you won't find another awning on the UK market that looks quite like this one.
Details:

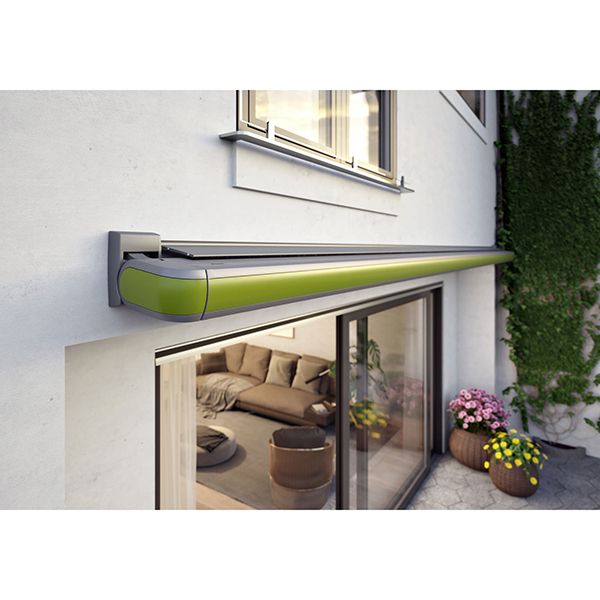

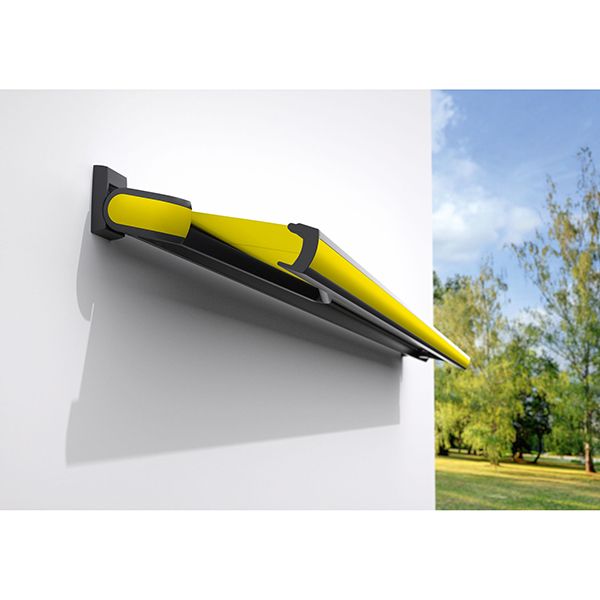

The MX-3 is suitable for various applications, shading areas of up to 6m wide at 3m projection and 5m wide with a 3.5m projection. The arms and fabric cover are fully protected by the front profile when the awning is retracted, creating a complete overall appearance. The cassette also hides the roller tube when the awning is extended, whilst the brackets are obscured as they are located behind the awning. The guttering system is sleekly integrated with the rounded front profile.
The arm bearer is manufactured with die-cast aluminium and is powdercoated, and features an integrated, variable pitch setting mechanism. Set the awning cover anwhere between 5 and 35 degrees as a flat wall fixture or up to 70 degrees using an eaves bracket fixture..
Customisation is yours
If you require an awning with neat lines, unique curves and huge colour possibilities, the MX-3 is an excellent choice. Whether you want a bright awning that brings your patio area to life, or a sophisticated awning that perfectly complements your outdoor space, the MX-3 features various properties that allow for both of this options with lots of styles inbetween.

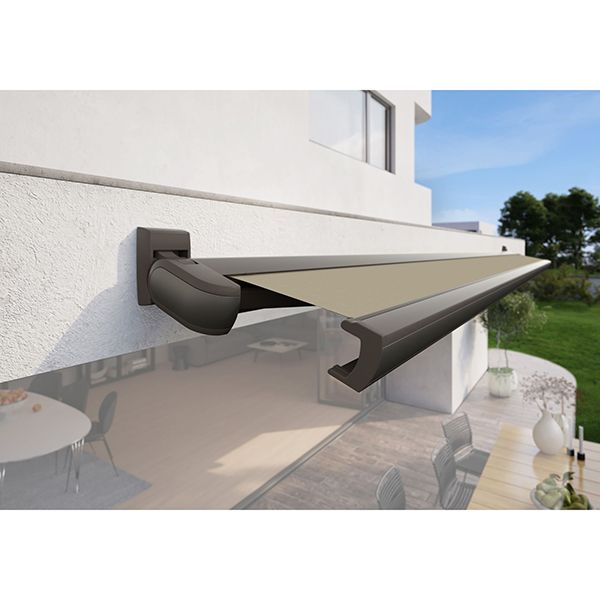

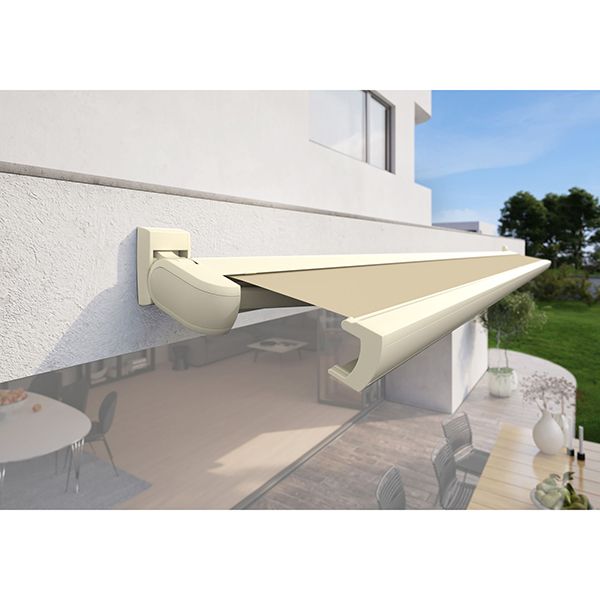

There are six standard colours for the frame, end cap and panel, with the possibility to combine these colours for your own unique finish. A huge selection of awning fabrics.

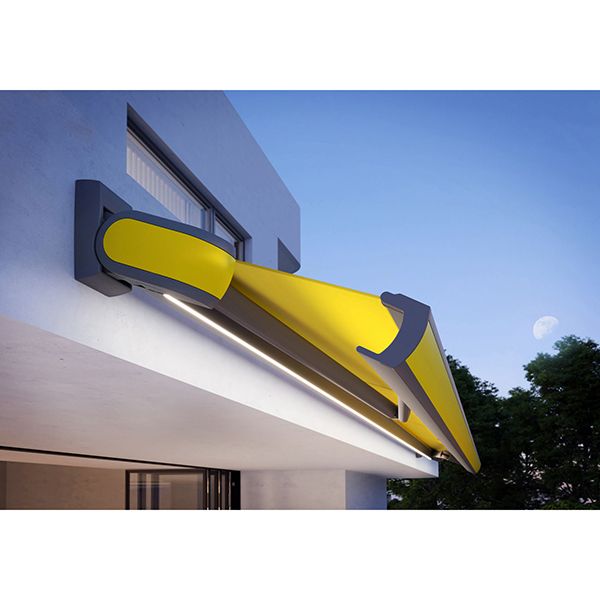

The lower cassette is designed with a slot that allows the LED line option to be located to create the perfect overall evening ambience.
Dimensions
Minimum Width: 1830mm at the smallest projection
Maximum Width: 6000mm at the largest projection
Minimum Projection: 1500mm at the smallest projection
Maximum Projection: 3500mm (at 5000mm width) at the largest projection
Cassette Depth and Height: 230mm x 120mm
Domestic and Commercial Applications alike covering up to 18 sqm.
Frame Cassette Colour options:
•Traffic white RAL 9016
•White aluminium RAL 9006
•Grey-brown similar to RAL 8019
•Off-white textured finish 5233
•Stone grey metallic 5215
•Anthracite metallic 5204
•Havana brown textured finish 5229
•Special RAL - POA
Operation options:
Manual with winding mechanism
Electric motor drive with various control options, either hard wired, wireless or IO technology for control via mobile and tablet apps
With electric operation we always suggest the Vibrabox motion detector option to retract the awning when the sensor detects too much movement on the awning cover in high winds.
Fabric Options:
The Markilux Visutex, suncolours, smart art and perla FR ranges are all available for the MX-3 with Perla FR and smart art at additional costs - please email or call for details.
Bionic tendon as standard in the arm technology.
Installation instructions are available on request and detailed PDF guides are included with your product delivery.
The Markilux MX-3 is a substantial, heavy-duty full cassette awning. Due to its weight and bulk, safe installation requires a minimum of two (and often three) competent people to lift the cassette onto the wall brackets safely. Mechanical lifting aids are recommended for larger sizes. Do not attempt to lift or position this awning alone.
The MX-3 utilises an "End Fix" bracket system, where the mounting points are located at the extreme ends of the cassette. This concentrates the entire load of the awning at these two points, making the quality of the fixing critical.
While DIY installation is possible for experienced tradespeople, we strongly advise engaging a professional installer for the Markilux MX-3. The combination of weight, precise levelling requirements, and structural load factors means professional experience is invaluable for a safe, long-lasting fit.
We do not currently offer a nationwide installation service, though we are exploring this for the future.
Safety Note: If you have any doubts regarding the suitability of your wall or the installation process, please contact us or consult a structural engineer before proceeding.
Markilux awnings carry a comprehensive 2 year manufacturers warranty for use in domestic applications and a 5 year warranty on the electric motor drive unit. Exact details on the warranty details and conditions are available on request…
The Markilux MX-3 is a stunning, shapely full cassette awning that makes a bold design statement. However, it is also a substantial, heavy-duty system. Because it uses an "End Fix" mounting design (brackets located at the far ends of the cassette), accurate measuring and structural assessment are critical.
Unlike many awnings where brackets can slide along the back bar, the MX-3 brackets are positioned at the extreme outer edges of the cassette.
The MX-3 is available with projections up to 3000mm (or 3500mm in specific widths).
For proper operation and rain protection, correct mounting height is essential.
Because you cannot move the bracket positions, existing wall features can be a major issue if not spotted early.
Need Advice? If you are unsure about the strength of your wall or how to handle an obstacle, send us a photo and your dimensions. We can specify the correct bracket solution to ensure your MX-3 is safe, secure, and looks fantastic.
