Weinor Terrazza - Luxury Glass Veranda Up to 6m Projection
Weinor
The glass veranda, or canopy, by very popular opinion, is probably the best weather protection solution for the British climate, creating beautiful outdoor covered space, with the knowledge rain won't stop play. A properly specified glass veranda will give so many extra hours, days and months to your outdoor life with the added comfort and protection. Combined with an optional built in retractable, electric fabric blind, you have sun and rain control completely sorted. Just how many days are warm enough in the spring and summer to sit outside, but there is an annoying drizzle or maybe a few rain showers going on? So what, you say as you sit under your glass veranda and just watch the show in comfort..
Phone Our Team Of Experts To Discuss Your Requirements
CALL US NOW ON 01933 449 000

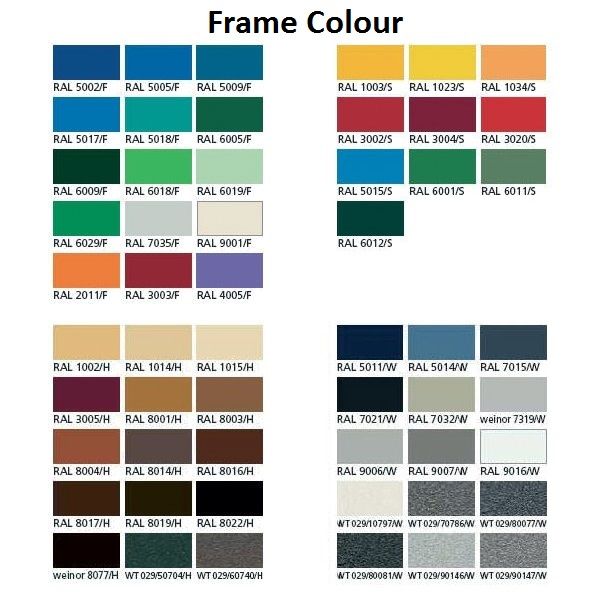

The Terrazza glass veranda, from market leaders Weinor, is top of its class in terms of robust aluminium profiles, high quality finishing, beautiful design and so many configurations in terms of the final visual appearance. it isone of very few verandas where a clear 7m span can be achieved between the front posts for example. A feature very much requested by customers who have stunning gardens or views, which they simply do not wish to block in any way. The very slick electric retactable fabric blind fitted underneath the glass roof as an option will provide sun shade, light and heat ingress control and is a must for any South facing gardens for sure. Super high quality electric LED lighting is another very popualr option to enable use of the veranda well into the evenings, all controlled from a simple hand set or your own smartphone by adding the Smart control system and app.. Choose from over 200 frame colours for the perfect blend into your own colour schemes.
The Weinor Terrazza L Glass Veranda is a traditional outdoor terrace cover system providing all year round protection from the rain.. With a maximum size of 6000mm (projection) by 10500mm (width) it can be extremely roomy and provide all year weather protection for a wide range of outdoor activities. The basic roof system can be fitted with different side infills and lower sections as well as the front to completely enclose if required, with a wide range of sliding or bi folding glass door options. Fully enclosed this provides the perfect all year round 'outdoor' area for your home and garden. The outdoor room is not insulated in any way and does not require the usual structural footings or insulated flooring of an extension and can be fitted only with the provision of concrete pads where the support legs need fixing.
Domestic or commercial use providing all year round weather protection.
Standard snow loading of 75Kg per sq. metre with higher loading specification on request.
Installation Instructions provided with every Patio Roof system.
The glass for the roof sections is NOT provided with the Terrazza and needs sourcing seperately and is normally 10 - 12mm in thickness.
Please call for further details.
Measuring for an Awning..
When measuring for an awning, the width, projection from the wall, height of the awning from the ground, the pitch of the canopy cover and the lowest height for the front profile when fully extended, are all the dimensions you should consider.
A ‘standard’ size and currently the most common size in the UK is a 4000mm wide awning with a 3000mm projection. On a standard house wall this awning could be installed at around 2800mm high from the ground, with a pitch of around 15 degrees on the canopy, so when fully extended the front of the awning would be at around 2000mm from the ground. The 3000mm projection would be less now, because of the angle of the canopy.
To guarantee a good rainwater run off from the fabric canopy a typical self supporting awning should be set at a minimum pitch of 14 degrees, but preferably greater than this if possible.
You can install and set a lot of retractable awnings to be at zero degrees of pitch, but then these should bever be used in the rain..At less than 14 degrees you should never leave the awning unattended when open and manage accordingly with rainfall.
Each awning brand and model will have a different and specific standard bracket position, so when measuring for an awning, please be aware of certain awning models which have fixed bracket positions.Many have brackets which can be repositioned but mostly the brackets tend to sit where the awning arms meet the cassette and mechanism.
Please check the specific model of awning and the fixing positions and be aware of limitations if you maybe have on the structure you are fixing to.
Dimensions and their Meaning
The ‘Ordering Width’ measurement refers to the overall width of the awning cassette or end to end dimension of any mechanism, when it isn’t a full cassette awning model. The fabric cover will ALWAYS be narrower than the awning width simply because of the physics, please check for exact fabric canopy width if this is important to you.
The ‘Projection’ is the length from the back of the awning brackets to the front of the leading profile and is when the adjustments in the arms are fully extended. Most awnings will be offered with the projections in 500mm increments, whilst the width is an exact millimetre dimension and most of our awnings are made to measure as standard.
Installation Considerations
When you are measuring for an awning and you have obstacles such as downpipes or maybe brickwork features so the wall isn’t totally flat you can choose to ignore these and focus on the width you need for the greatest shading. All the awnings have their standard fixing brackets but you can always order ‘stand off’ or ‘pipe’ brackets which enable the awning to be fitted away from the wall and in front of any obstacles. You might also discover unsuitable sub structure for fitting, such as single skin brickwork or maybe the awning position sits right over a lintel? In this case you can also spread the loading of the awning down, up or across your wall using spreader brackets.
Please email or call us with details of your obstacles and issues and some dimensions and we can advise if it isn't obvious from options given already.
Some Basic Advice
We have never known anyone to complain about any awning being too large, but a few people have wished they ordered something slightly bigger once they realise they had plenty more room and needed more shade and cover with the awning.
You create outdoor protected space with an awning for relaxing, entertaining and dining so covering your tables and chairs with enough overhang at the sides and front to deal with the moving sun is essential. The direction your patio, terrace or garden faces is also a huge factor to the awning size. Maybe take a long stick and at various times of the day hold it out from your building wall to show exactly where the shadow sits and this will show you what the awning will also do.. Of course have the stick or rod at the length you think your awning should be and also hold it at about 2m, but angling up to the height where the awning position will be - usually somewhere between 2.5 and 3m in most cases. You might be surprised how little shade you get at certain times of the day, but whatever your reasons are for an awning you will find other benefits other than just sunshade.
We offer many awning models with manual or electric drop down front valances and these are perfect to protect from low lying sun (West facing gardens) and also provide privacy and protection from cooling breezes. Many have a maximum extension of 2.1m to give total cover from ground to awning font profile…
