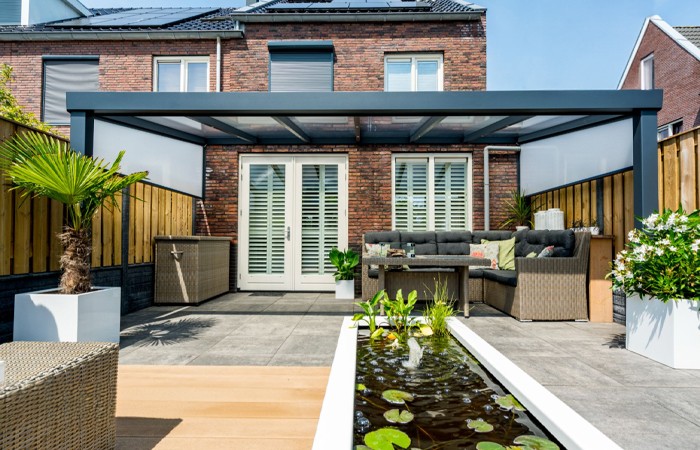

Deponti Giallo Aluminium Glass Veranda

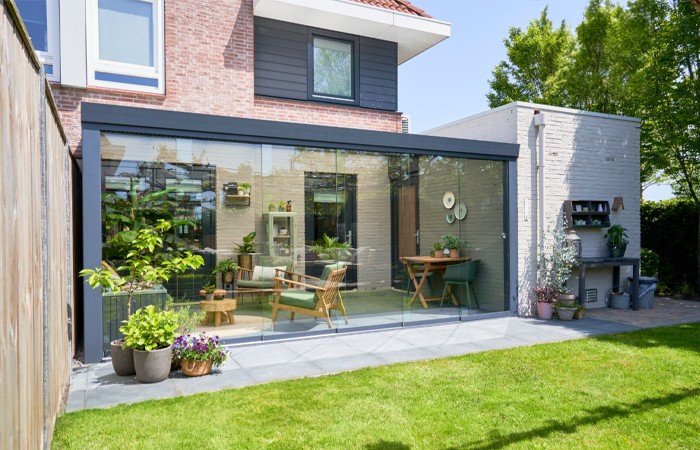

Aluminium profile veranda and outdoor room system prepared for glass in the roof.
Glass is NOT supplied for this system and we suggest you source glass locally as it is heavy and best with minimal handling. We provide exact details for the glass dimensions and specification based on the ordering size.

The Giallo aluminum veranda is supplied as standard with all posts, gutter profile, wall profile, beams, cover strips and the necessary assembly materials. Fixings for the wall and post are not supplied as they vary depending on the substrate you are fixing to.

Internal rainwater drainage components are supplied as standard for fitting into 2 front posts. Drilling is required for the drainage installation.
The Giallo veranda is available as standard in mm widths of 4060, 5060, 6060 or 7060 as a single section; there is no limit to the number of sections that can be joined end to end.
You will see the ordering sizes as rounded mm dimensions. The ordering dimensions refer to the centre line width of the roof beams and there is a further 30mm either side for the Overall Width, which includes the wall plate and front gutter width.

The roof pitch is recommended to be 157mm for every metre projection (approx. 9 degrees), see measuring tab for further details.

Back wall plate height is 149mm with a rounded profile cover cap with a total height of 185mm
Front gutter profile is 166mm tall with a leaning straight flat profile
Post sizes are 115mm x 150mm square corner edge profile

Number of Posts
The Giallo glass with overall widths of 4060 mm is supplied with 2 posts as standard.
Front post size is 115mm x 150mm x 3000mm as standard and can be cut to suit on site.
Standard 3000mm posts suppplied for concreting into the ground to height required.


Important Note on Ordering Width Dimensions...
The centre-to-centre distance between the roof beams of an Giallo glass veranda are dependent on exact veranda size ordered.

A roof with five one-metre sections has a total width of 5060 mm. The extra 60 mm is the distance from the centre of the beam to the outside of the beam, which is 30 mm; this extra width is at both ends, for a total of 60 mm.
Therefore if you order a 6000mm wide (Order Width) veranda the Overall Width for the wall plate and front profile and outside of the roof bars will be 6060mm

Projection
The projection dimensions are from the back of the wall plate to the inside face of the front posts and the projection dimensions will never be the exact millimetre dimensions of the ordering options simply because of the roof pitch. If an exact millimetre dimension is required on your site please contact us and discuss.

Rainwater discharge
The Giallo veranda can be easily fitted with rainwater discharge by drilling one or more holes at the position where the front support post meets the horizontal gutter support profile. The post then serves as rainwater discharge pipe. A range of rainwater discharge fittings are available for further connection (EPDM rubber drain ring, 50/60 mm leaf catcher, 60 mm rainwater discharge pipe and bend). Standard components for the installation of 2 rainwater pipe dispersals are included as standard with outlets to front of posts at low level

Dimensions & slope

• This aluminium veranda roof should be installed with a slope of 157mm per metre. (approx. 9 degrees)

The height of the aluminium wall profile and the front clear passage height (distance from bottom of gutter profile to the ground) are completely dependent on each other and determined by this slope.

Posts & joined verandas
• Maximum distance between the upright support posts is 4 metres.

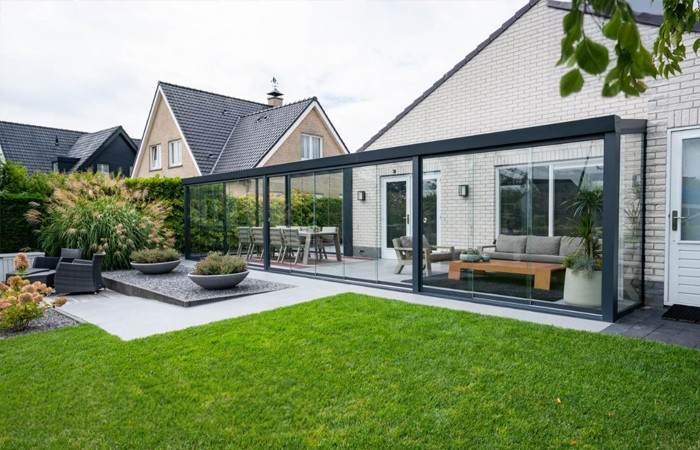

• When verandas are joined, a post is always placed under the coupling.
• The rainwater discharge cannot be placed inside a post above which gutters are joined.

Dimensions and Installation
If you are going to install your veranda based on the standard dimensions as supplied, you can use the dimension table below.

If you require the wall profile section lower or want to make the passage height of the gutter lower, you must:

Subtract the same millimetre dimensions from both these measurements. So if your wall profile is mounted 300mm lower, you must also shorten your front support posts by 300mm (or sink them into the ground a further 300mm) The angle (pitch) of the roof must be maintained.

If you want to reduce the passage height, you can easily shorten the length of the posts by making a square cut if you are fixing to the ground surface. However, you must then also mount the wall profile the same distance down lower on the wall. The same applies if you decide or have to mount the wall profile lower on your wall.

Calculation for installation - example:
You have a roof with a width of 3000mm and you want to reduce the standard passage height from 2500mm to 2200mm. You therefore shorten your posts by 300mm or you place the posts 300mm into the ground, so the bottom of your gutter is at a height of 2200mm. Your wall profile must therefore be lowered by 300mm, which means that the bottom of the wall profile must be placed at 2960mm - 300mm = 2660mm.

Ground Fixing
An Giallo veranda can be installed on any existing foundation or stone surface if it complies.
For added strength or when there is not a good foundation present, any number of pre cast concrete bases can be used and ordered in our online shop. These concrete bases can be easily installed out of sight under the posts with the supplied bolts. The concrete bases are available with or without a rainwater discharge opening.
